Military Fuel Storage Bladder

Certification

CE,BV,SGS,ISO9001

MOQ

5pieces

Payment Terms

T/T, Western Union, Paypal

Packaging Details

Carton Box, Wooden Box, Woven Bag

Material

TPU Polyester Material

Dimension

Customized

Color

Army Green, Blue, Camflouage, Grey, Sand Yellow, customized

Product Description

Military Fuel Storage Bladder for the storage and transportation of bulk fuel ,crude oil and lubricants etc .They are made of polyether and super hard material with ballistic plaiting and two sided polyvinyl chloride covering. A shell with such material can provide not only strength, but also containment and workability of products in the range of temperatures of -60 – +80 degrees.

These fuel bladders proved themselves well under the most extreme and the hardest conditions of use – whether these are wet rainforests, hot deserts or even cold tundra.

Product Features

The collapsible military fuel storage bladder are flat when empty and low profile after filled with fuel. We have small fuel tanks for easy handle, and large durable fuel containers for long-term storage. The biggest capacity can reach 800,000L. These collapsible fuel bladder tanks are constructed using the supreme heavy-duty TPU coating fabric. The best TPU coating fabrics satisfy the highest demands for store heavy chemical liquid due to their excellent material properties.

Product Specification

Multiple Sizes: 20 ltr to 800,000 ltr
The below table is some main sizes for reference. The size is absolutly customizable. Any requirements please discuss with us.

Type

Volume

Size

Thickness

G.W

Packing size

FS-F02

200L

1.4*0.9m

0.7mm

~3kgs

~0.4*0.4*0.3m

FS-F05

500L

2*1.1m

0.7mm

~5kgs

~0.4*0.4*0.3m

FS-F1

1,000L

2.5*1.5m

0.7mm

~8kgs

~0.5*0.4*0.3m

FS-F2

2,000L

3*2m

0.7mm

~14kgs

~0.5*0.4*0.3m

FS-F3

3,000L

3.5*2.5m

0.8mm

~20kgs

~0.5*0.5*0.4m

FS-F4

4,000L

4*2.4m

0.8mm

~25kgs

~0.7*0.5*0.4m

FS-F5

5,000L

4.5*2.5m

0.9mm

~28kgs

~0.7*0.5*0.4m

FS-F8

8,000L

5*3m

0.9mm

~40kgs

~1.1*0.5*0.3m

FS-F10

10,000L

6*3m

1.0mm

~55kgs

~1.1*0.55*0.35m

FS-F15

15,000L

        6*4.5m

1.0mm

~75kgs

~1.1*0.6*0.4m

FS-F20

20,000L

7*4.5m

1.0mm

~85kgs

~1.1*0.7*0.5m

FS-F25

25,000L

9*4.1m

1.0mm

~98kgs

~1.1*0.7*0.6m

FS-F30

30,000L

7.5*7m

1.0mm

~140kgs

~1.3*0.7*0.6m

FS-F40

40,000L

9*7.5m

1.2mm

~210kgs

~1.3*0.8*0.7m

FS-F50

50,000L

10*8m

1.2mm

~256kgs

~1.3*0.9*0.8m

FS-F100

100,000L

14*10m

1.2mm

~460kgs

~1.6*0.9*85cm

FS-F150

150,000L

15*12m

1.2mm

~570kgs

~1.6*1*0.9m

FS-F200

200,000L

16*14m

1.2mm

~710kgs

~1.6*1.2*0.9m

FS-F500

500,000L

25*20m

1.5mm

~1800kgs

~2.5*1.8*1.5m

Optional material thickness: 0.7mm,0.9mm,1.0mm,1.2mm,1.3mm,1.5mm
The above deta is our suggested thickness which we think it under quality control considering our technology and experience. It’s optional, more thick, more expensive.

Optional Color:
– The sample order depend on the inventory;
– The bulk order has white,army green, sky bule, dark blue, red, orange,gray,yellow, black etc., for choice.

Product Application

  1. Marine fuel storage allows sport-fishing vessels, recreational yachts and workboats to carry more fuel onboard.
  2. Long-distance travel car spare fuel storage for trucks, SUVs and trailers, etc.
  3. Oil filed drilling, use for store and transport oil.
  4. Spill Berms, Effectively prevent the damage caused by oil leakage to the surrounding soil and environment during the maintenance or repair on the oil pump collection site and prevent the oil from seeping into the ground and polluting the soil or causing other disasters.
  5. Chemical liquids transportation, storage, and packaging. Such as feed additive, silicate, saline solution, propylene glycol, ethylene glycol, polyether, alkylation agent, herbicide, fertilizer, etc.
  6. Grease transportation, storage, and packaging, which include lubricating oil, lubricating oil additives, transformer oil, white oil, tung oil, glycerin, coconut oil, hydraulic oil, industrial gear oil, etc.

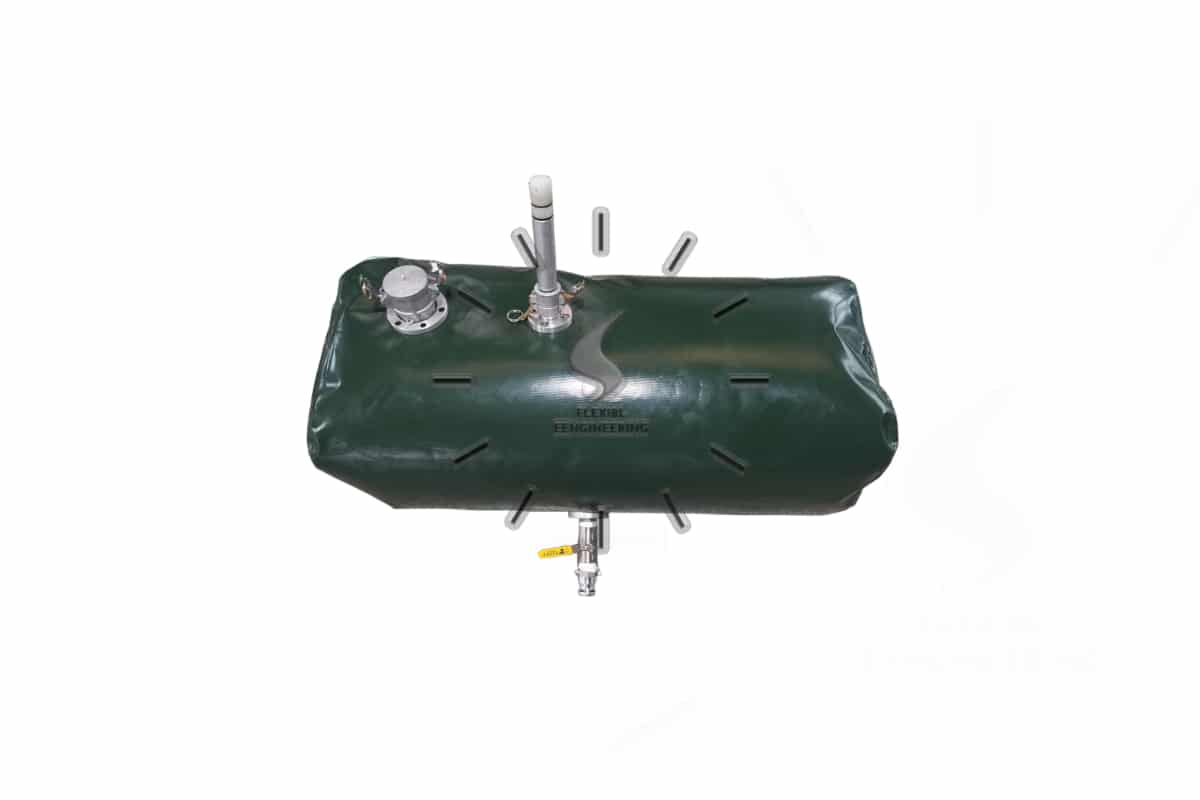

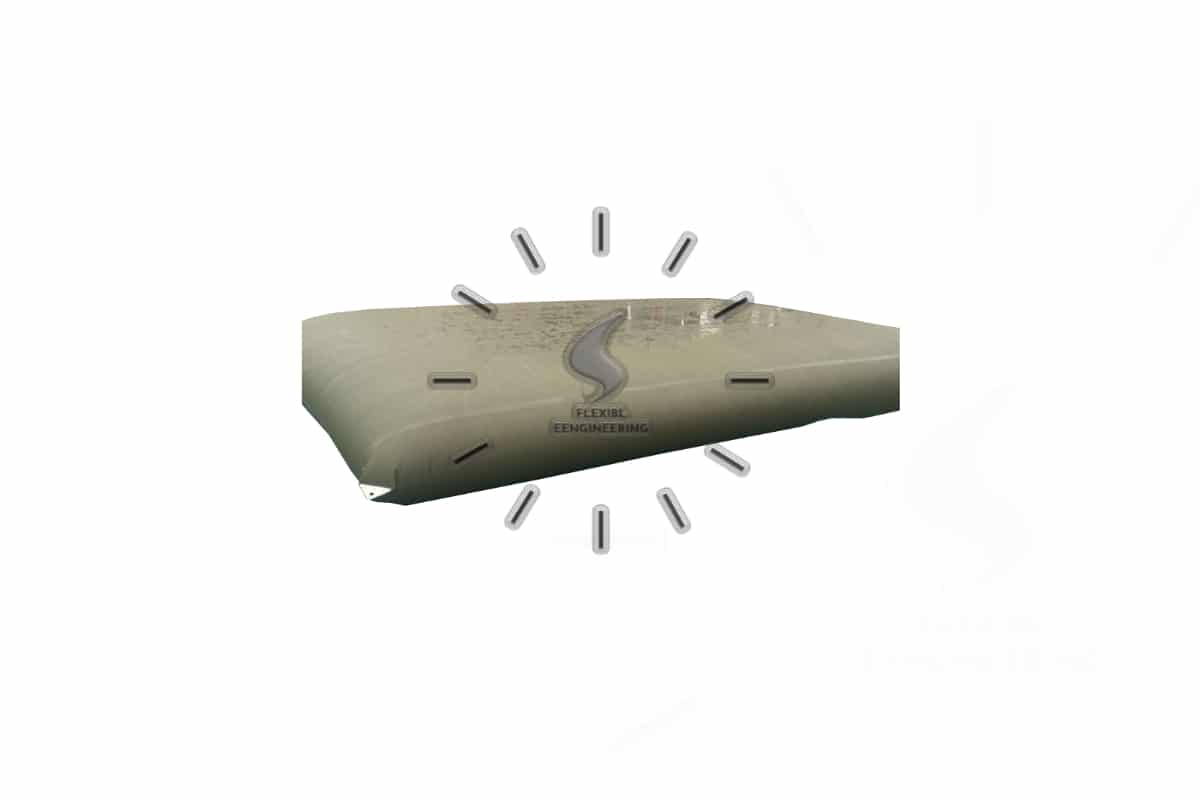

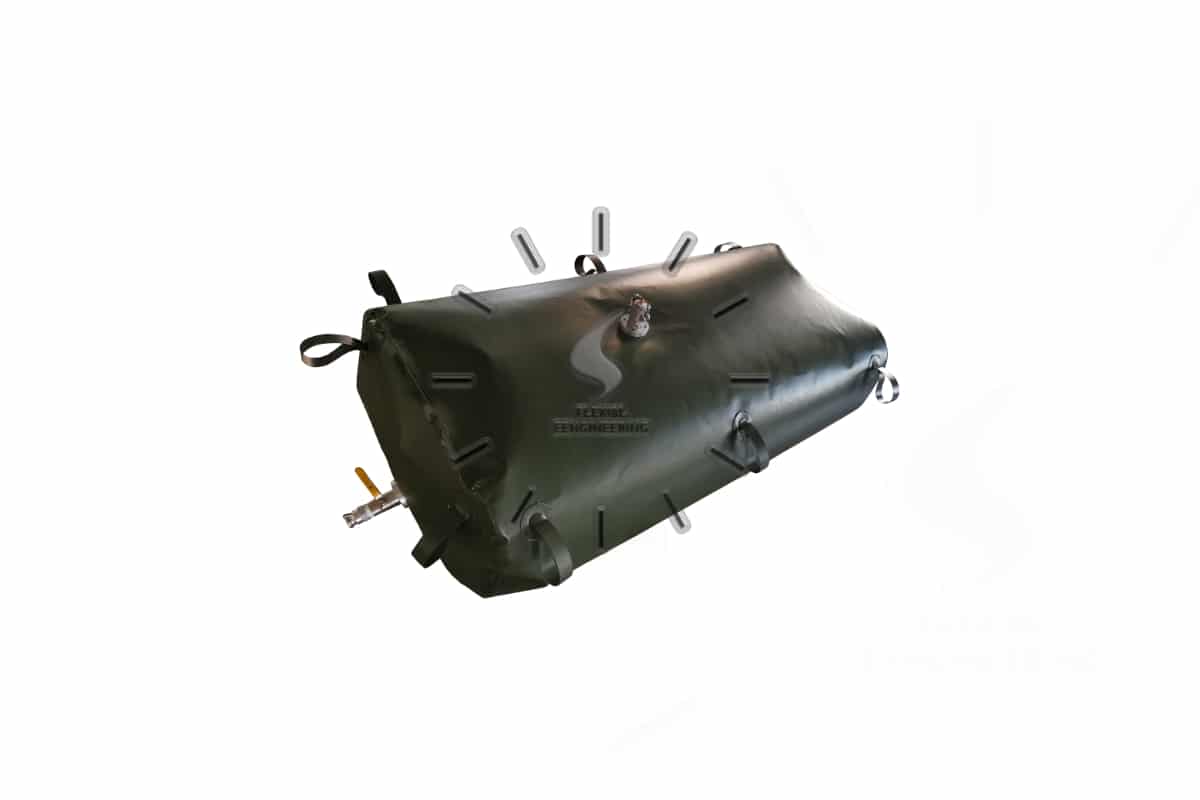

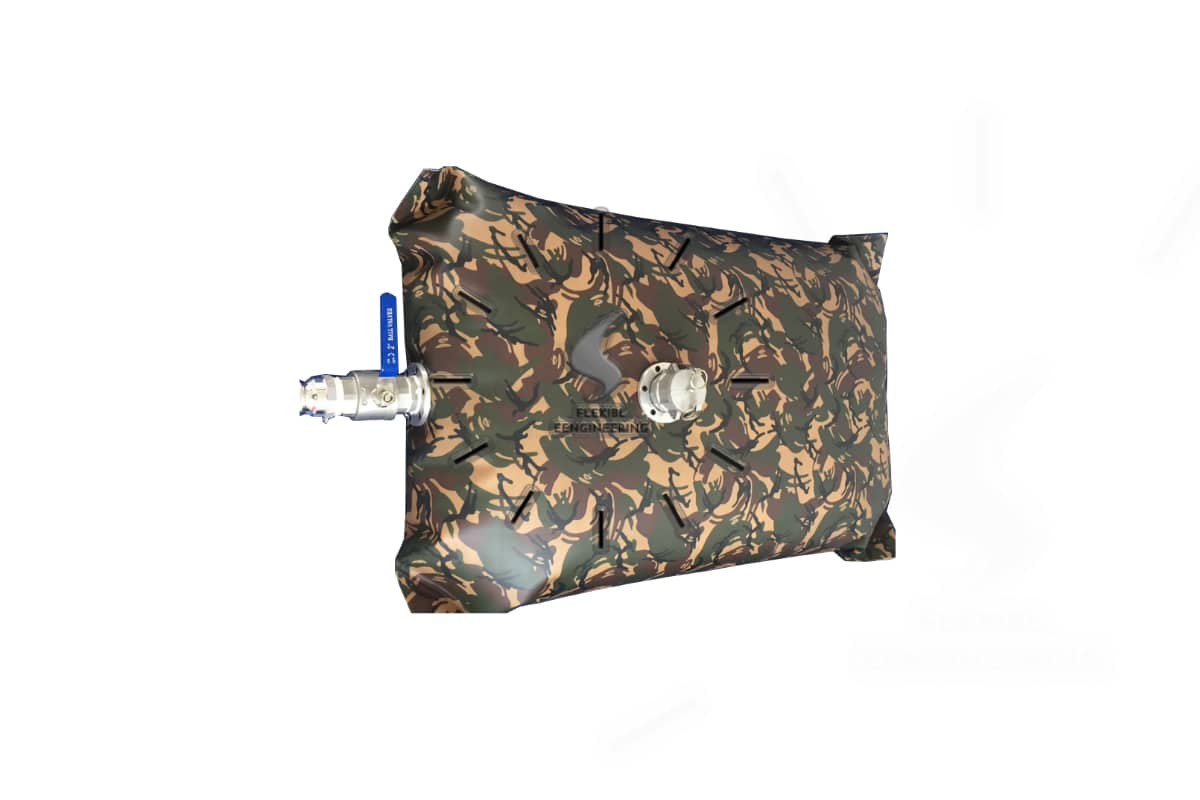

Product show

How can we help you?

Applicatiion Proposal
Temporary Water Storage, Irrigation, Agriculture, Fire FIghting, Fuel Storage…etc…
Material Proposal
PVC Duty Material, TPU Dirnking Material, TPU Fuel Material
Package Proposal
Woven Bag, Cartons Box, Wooden Box
Dimension Proposal
Custom-made service provide.
